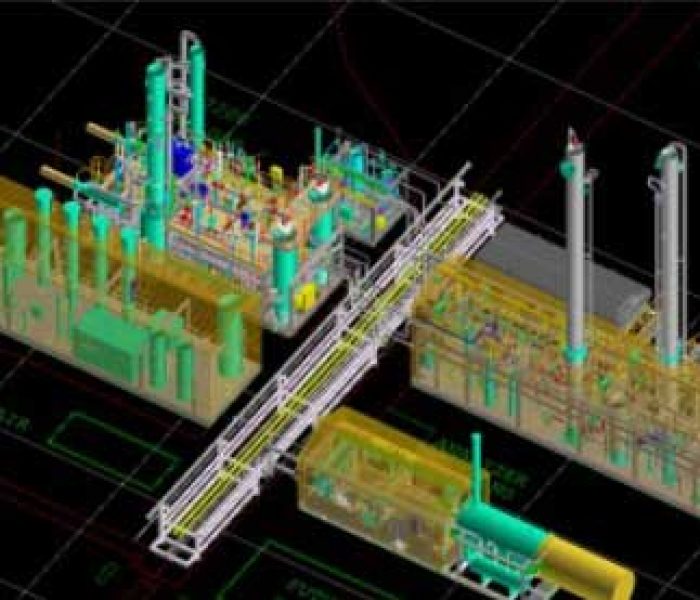

Helium Recovery Facility
ARJAE supported the development of a helium recovery facility designed to process natural gas feed and extract high-purity helium while maximizing the value of additional process streams. The facility integrates advanced gas processing with supporting utilities to deliver reliable performance and efficient product recovery.
Through coordinated engineering, design, and fabrication support, ARJAE helped deliver a processing system capable of producing high-purity helium while also recovering valuable by-products for plant use.
Project Scope & Objective
This project focused on the development of a helium recovery facility with a feed capacity of 15 MMSCFD. The facility was designed to produce ultra-high purity helium while converting effluent streams to high valued products.
The objective was to create an efficient processing system capable of delivering reliable helium recovery while supporting plant operations through integrated utilities and energy recovery.
Project Highlights
Feed Capacity
15 MMSCFD natural gas feed
Product Output
99.999% (Grade 5) helium purity
99.9% guaranteed helium recovery
Additional Product Streams
Optional beverage-grade COâ‚‚
Hydrocarbon recovery for plant fuel gas and power generation
Supporting Systems
Condensate stabilization
Integrated plant utilities
Engineering & Design Approach
The facility was designed to maximize helium recovery efficiency while maintaining reliable plant operation. Process systems were carefully configured to support high-purity helium production while allowing additional product streams to be recovered and utilized within the facility.
ARJAE’s integrated engineering approach ensured that gas processing systems, utilities, and supporting infrastructure worked together efficiently throughout plant operations.
Facility & Fabrication Execution
Engineering and fabrication efforts were coordinated to support efficient construction and integration of the helium processing systems and supporting plant infrastructure.
The facility incorporated gas processing equipment, stabilization systems, and plant utilities, ensuring stable plant performance and reliable product recovery.
Challenges & Solutions
Helium recovery facilities require precise process control and efficient separation systems to achieve high-purity product specifications while maintaining overall plant efficiency.
Key challenges addressed during the project included:
-
Achieving ultra-high helium purity and recovery rates
-
Integrating multiple product streams within a single facility
-
Supporting plant energy efficiency through hydrocarbon recovery
These challenges were addressed through careful process integration and coordinated engineering design, allowing the facility to meet performance requirements while supporting reliable operations.
Outcome
This project demonstrates ARJAE’s capability to support specialized gas processing facilities, delivering integrated systems designed to recover high-value products while maintaining reliable plant operations.
